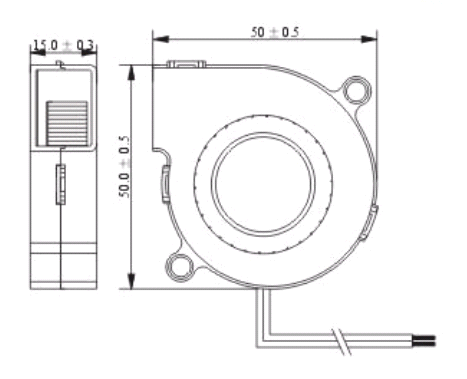

Model XD5015DC |
Bearing Style |
Voltage VDC |
Current
AMP |
Power Watts |
Speed
RPM |
Airflow
CFM |
AirPressure
mmH2O |
Noise dBA |
Weight |
|
P/N |
|
XD5015LX12HS |
S |
12 |
0.13 |
1.56 |
5000 |
4.4 |
5.6 |
29.9 |
62g |
|
XD5015LX12MS |
S |
12 |
0.09 |
1.08 |
3900 |
3.5 |
4.2 |
25.8 |
|
XD5015LX12LS |
S |
12 |
0.06 |
0.72 |
3000 |
2.5 |
3.4 |
21.5 |
|
XD5015LX12HB |
B |
12 |
0.13 |
1.56 |
5000 |
4.4 |
5.6 |
29.9 |
|
XD5015LX12MB |
B |
12 |
0.09 |
1.08 |
3900 |
3.5 |
4.2 |
25.8 |
|
XD5015LX12LB |
B |
12 |
0.06 |
0.72 |
3000 |
2.5 |
3.4 |
21.5 |
|
S: Sleeve bearing |
B: Ball bearing |
|
Insulating aterial centigrade：10MΩ at 500VDC between lead and frame |
Inner press： 500VAC/min ,current〈5mA |
|
Working temperature：-20ºC～80ºC |
Working humidity：20%～85% |
|
Working pressure：Rated Voltage ±15% |
Normal temperature working time: ball bearing hour's five,oil bearing hour's three. |
|
 |
|
Conversion Table of Airflow |
|
CFM |
m3/sec |
m3/min |
ft3/sec |
|
2118 |
1 |
60 |
35.31 |
|
35.31 |
0.01666 |
1 |
0.5885 |
|
60 |
0.02832 |
1.69833 |
1 |
|
1 |
0.00047 |
0.02832 |
0.01666 |
|
Conversion Table of Air Pressure |
|
mmH2O |
inH2O |
Pa=N/m |
afm |
|
1 |
0.03939 |
9.80665 |
0.00009 |
|
25.4 |
1 |
249 |
0.00246 |
|
0.10197 |
0.0040 |
1 |
0.00001 |
|
10332 |
407.1 |
101325 |
1 |
|
|
|
